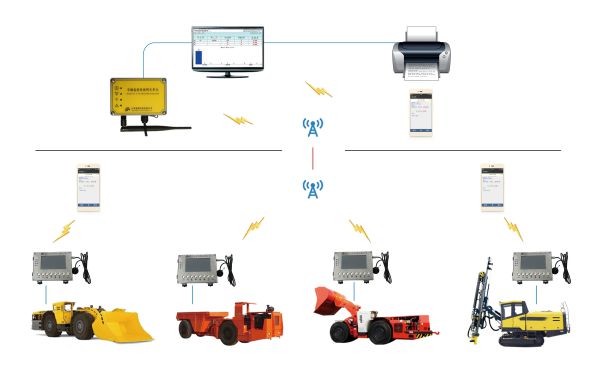

KC201 locomotive monitoring and management system mainly realizes real-time monitoring and control of various working states of mining locomotives. The system transmits all monitoring data to the server of the monitoring center through the WLAN wireless communication network. The monitoring software on the server analyzes and processes the monitoring data, and outputs various parameter reports for the user to view, thereby realizing remote management of the locomotive.

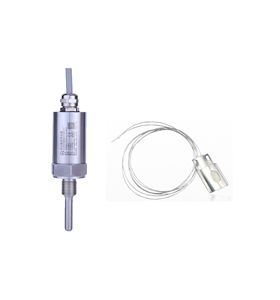

A temperature sensor is installed at an important temperature monitoring point such as the engine cylinder head and the radiator front end, and a water spray pipe is installed on the radiator, the water spray pipe is connected to an electric water pump water outlet, and the electric water pump is connected to a water storage tank. The temperature data of each temperature measurement point is collected and uploaded to the central server in real time, data analysis and curve drawing are performed on the central server, the radiator flushing plan is formulated, and the radiator is automatically flushed to keep the temperature curve within a reasonable range, achieving dynamic and real-time. Flush cooling effect.

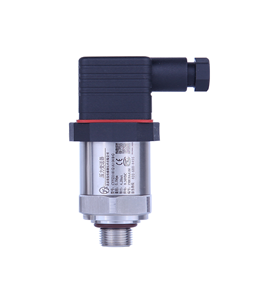

By installing a pressure sensor in the brake system, collecting data in real time and uploading it to the central server, forming a large database in the central server and drawing a pressure curve, analyzing the curve to formulate a maintenance plan for the brake system, and also making an alarm reminder Wait for the action.
