Series products of coal mine | kc142 intelligent mine remote

Time：2020-08-03

​Click follow to learn more!!

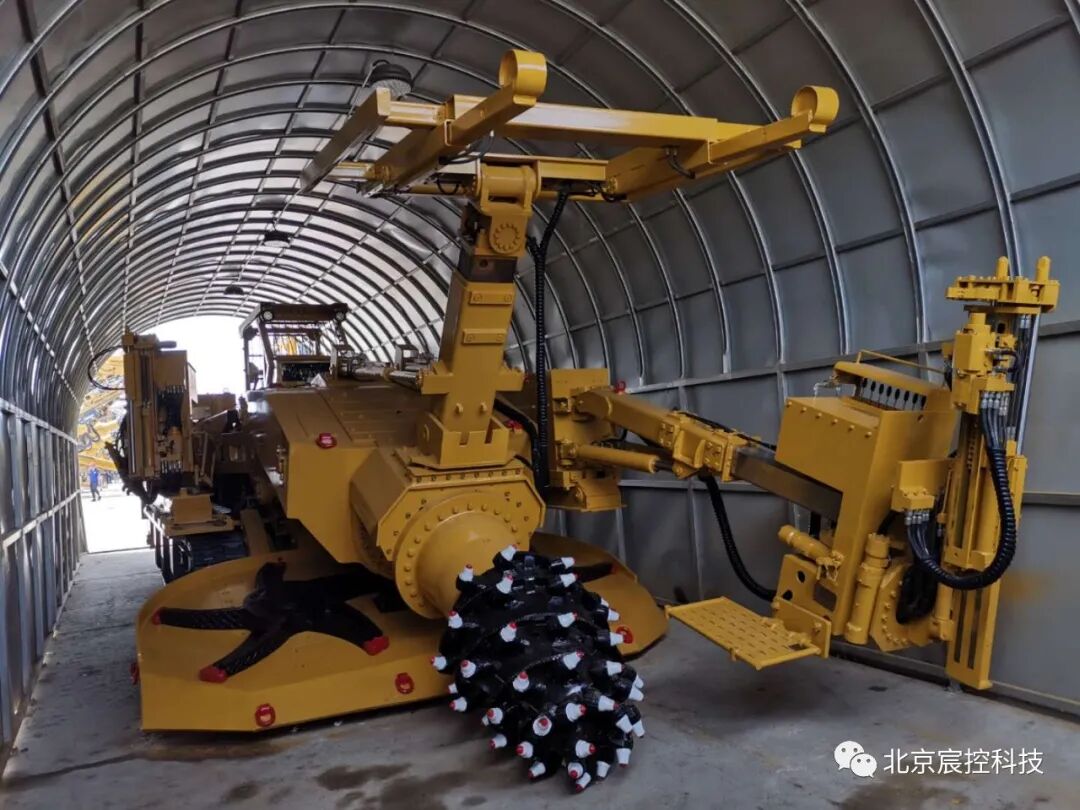

Intelligent remote control system of chenkong technology-kc142 roadheader

System introduction

Roadheader is the main production equipment for coal mine roadway excavation. The mining technology and its equipment level are directly related to the production capacity and efficiency of the coal mine. With the wide application of intelligent technology in the mine, chenkong technology began to focus on the development of automatic, intelligent and unmanned control technology for mining equipment, and officially launched the intelligent remote control system of roadheader in 2019.

major function
01Intelligent, remote, manual three working modes, covering all operation scenarios
02

The sensor can collect and display the operation parameters, working status and other information of roadheader in real time, and has the function of fault alarm

03

The HD video signal is processed by the encoding and decoding algorithm of software and hardware, and the ultra-low delay transmission of about 200ms is realized

04
The position and posture monitoring system can analyze and calculate the precise position coordinates of cutting head relative to the vehicle body in real time
05
The heading angle and inclination angle of the roadheader and the position coordinates of the fuselage in the roadway are calculated in real time by the fuselage positioning system
06
The automatic cutting system automatically cuts out regular section through data analysis



07
The coal and rock identification system can monitor the cutting force exerted by cutting head on coal and rock during cutting, and adjust cutting power and motor current according to feedback, so as to avoid sharp change of coal seam hardness and damage of motor
Intelligent remote control system diagram

What problems are solved by intelligent remote control system?
01
Blind cutting in roadheader
02
Cutting deviation and unevenness of roadheader
03
The automation level is insufficient and the cutting quality is low
04
Can not achieve remote control, security risks larger problems
Introduction of main products

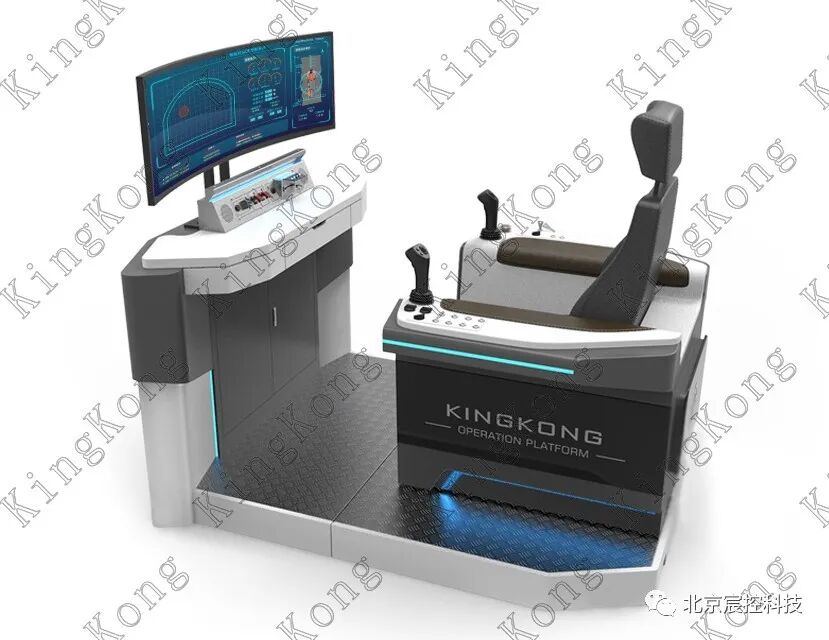

KC142 Intelligent operation platform



main parameter
Size: 1700 * 1350 * 1450 (mm)
Style: seat control
Protection level: IP 67
Image delay: < 200ms

Communication mode: 433MHz / 2.4GHz

Smooth operation with low delay
Laser scanning
Precise algorithm
Real time monitoring and positioning
Easier control
No distance limit

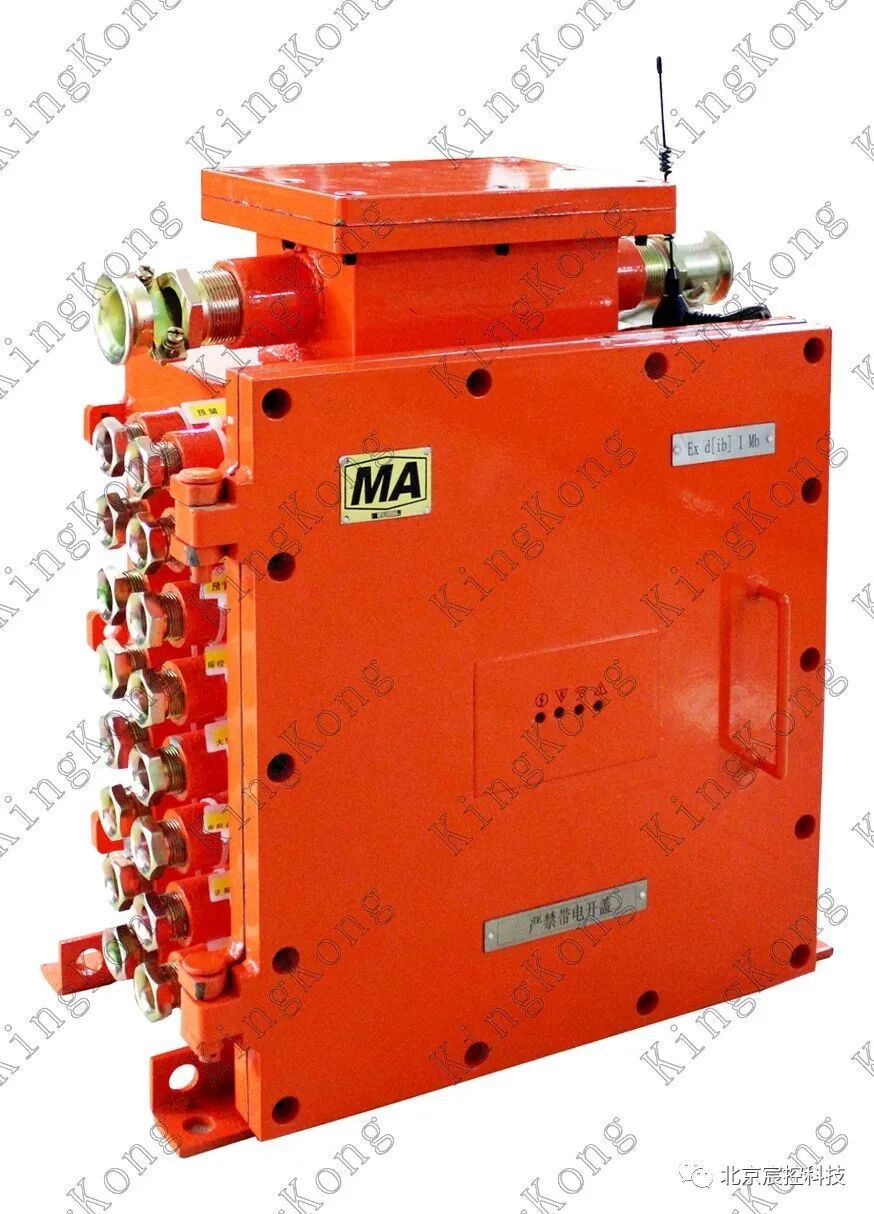

KC142 Intelligent electric control box




main parameter
Coal safety No.: kxb24c
Size: 420 × 215 × 479 (mm)
Operating frequency: (2.4 ± 0.1) GHz
Working voltage: AC127 / 660 / 1140V
Working current: < 1.58a
Stable performance
Scalability
Rich functions
Fault indication
ARM core processor
Embedded system platform
KC142 3D laser scanner






main parameter
Size: 610.7 × 284.8 × 254.8 (mm)
Weight: 50kg
Protection grade: IP67
Working voltage: 12VDC
Working current: the maximum current is less than 8A
Monitoring range of left and right roadway walls: 1.5 ~ 5m
Forward distance monitoring range: 4 ~ 30m

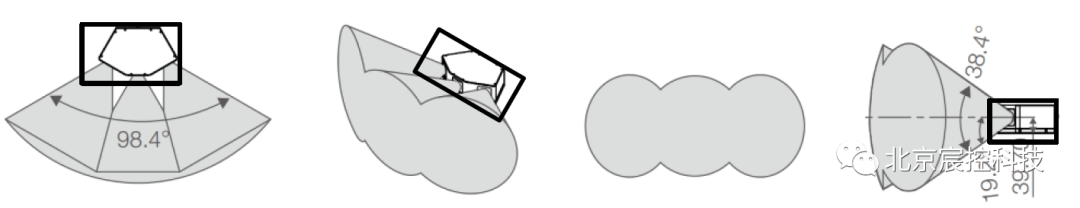

The effective angle of radar is as follows:

Flameproof safety
Three side window transmission
Beautiful structure
Scanning penetration is strong

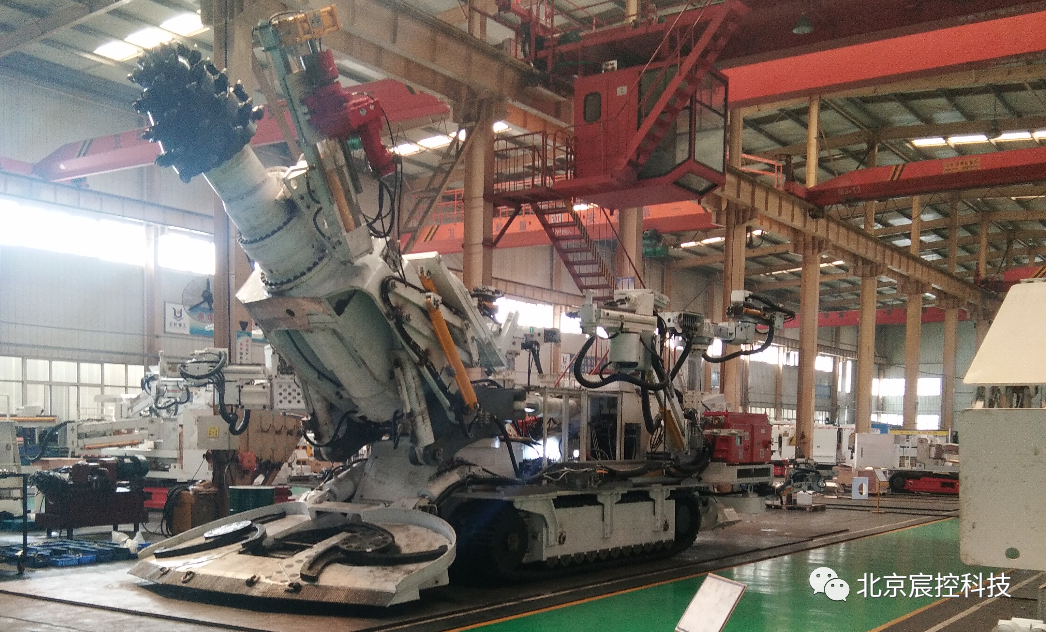

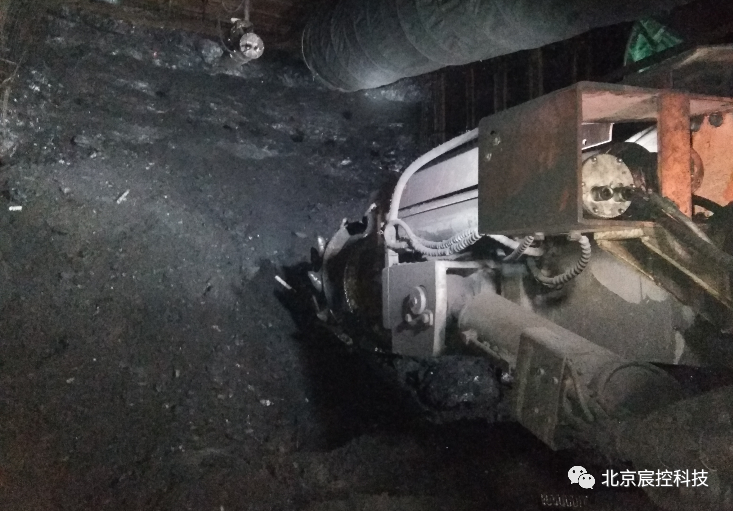

Applicable scenarios
